Kombucha 7bbl Beer Making Equipment Brewery For Craft Brew

FOB Reference Price:Get Latest Price
$21,000.00 - $51,001.00 / Sets | 1 Set/Sets brewery system (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Processing:
Other
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Runfang
Model Number:
ZM-C-500
Voltage:
220V/380V(adjustable)
Power(W):
15KW-200KW
Weight:
200KG-2000KG
Dimension(L*W*H):
Capacity Request
Processing Types:
Beer
Certification:
ISO CE
Usage:
Pub Basserie cerveza bars
Spirits:
Siemens PLC HLT Customized
Capacity:
7bbl Brewery Equipment
Material:
Stainless Steel 304 with 80mm rock wool
Keyword:
Beer Equipment
Heating method:
Electrical Heating
Application:
Brewery Equipment
Product name:
Kombucha Beer equipment
Type:
7bbL Beer Equipment
Name:
Kombucha 7bbl Beer Making Equipment Brewery For Craft Brew
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
3 Years
Supply Ability
Supply Ability:
20 Set/Sets per Month beer equipment
Packaging & Delivery
Packaging Details
Export standard package
Kombucha 7bbl Beer Making Equipment Brewery For Craft Brew
Port
Qingdao
Lead Time :
40 days after deposit payment
Beer Equipment

Kombucha 7bbl Beer Making Equipment Brewery For Craft Brew

We produce various kinds of micro brewery system for our customer. Customized beer equipment is totally made according to your individual demand, actual workhouse and budget. Each brewhouse system are designed to brew all kinds of beer that is popular in the world. And the fermentation system equip high quality parts and raw material, that has pass the pressure vessel CE. No matter you'd want to brew IPA, Lager, Stout, Non Alcoholic beer, gin or Cider. Our flexibilty design can meet all your idea.

7bbl beer equipment equips 2 vessels for option. There are many combination modes for customer to choose.

Mash/Lauter Tun/Hot Liquor Tank Combination Vessel + Brew Kettle/Whirlpool
Mash/Lauter Tun + Brew Kettle/Whirlpool

Customer can tailor their own brewhouse, just tell your individual needs!

How to purchase your own brewhouse? How to find the brewery equipment? How to built your dream brewery?

Choose US, you will find everything goes well beyond your imagin.

From design, to make layout, to produce, to installation, to warranty. We take care of every step to meet your actual needs. A good beer equipment supplier, you deserve better!

Kombucha 7bbl Beer Making Equipment Brewery For Craft Brew
Outside surface
Stainless steel or red copper,THK:1.5mm-3mm
Inner surface
S.S.304,THK:2mm-4mm
Top shape
Seal head or conical head or domn head
Heating method
electricity/Steam/direct fire
Insulation layer
Protected by polyurethane,THK:70-100mm
Polishing
≤0.4µm
Manhole
Side upward or your requirements
Plate heat exchanger
4m²-12m²
Agitator
Raking system conneted into a top reducer

Production Advantage for Beer Aging Maturity Equipment

(1) High quality materials
The raw materials is SUS304 and SUS316, which require materials quality certificate.
We’ll test the materials quality using chemical agent when we receive the materials.

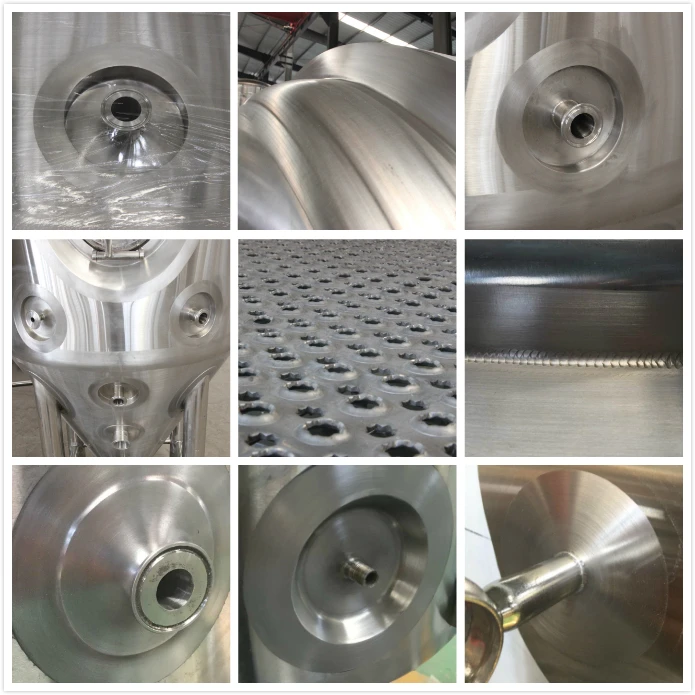

(2) Excellent appearance
The polishing standard of welding seam is 240 um, 60mm width. All of connection required turn up workmanship and all of welding seam required polishing, which is more smooth tank surface. We’re very serious about the excellent appearance of tanks.
(3)The standard of tanks
We use plasma torch to cut the materials on the soft carpet, avoid to damaging the surface of stainless steel, and then we adopt double argon protection welding
Volume: Working volume and 20%-30%additional space.
Inner Shell: SUS304 materials, thickness 3mm, acid washing and passivation treatment, furthermore,polishing and mirror treatment are workable with different cost.
All of the inner surface connection using turnup workmanship and polishing round.
The normal pressure is 0.2Mpa, maximum test pressure is 0.4Mpa.
Cladding: SUS304, 2mmthickness, welding seam polishing, 60mm width.
All of the welding connection polishing treatment, more smooth
(4)The special design
Four adjustable legs. In special area, stand bolt and gasket can be designed to avoid earthquake.
All of connection is Ф38.1(except mash tun outlet), Jacket using thread connection,pipe using clamp, easy to unpick and washing. Fliter plate using Milling type grid,strong and smooth. No noise from mixer equipment, the motor variable frequency.

Main Advantage for Beer Brew

a. 2, 3 and 4 vessel Brew House Systems
b. Available production capacity from 3 – 60bbl Systems
c. 304 Stainless Steel Construction
d. 304 Stainless Steel, “High Grip” brewing platform and Stairs
e. Glass Manways
f. Grist Hydrator
g. Heat Exchanger
h. American Made Baldor SS washdown pumps
i. Auto PLC Control, iPad/iPhone diagnostic capable
j. Automatic and Semi-automatic controls

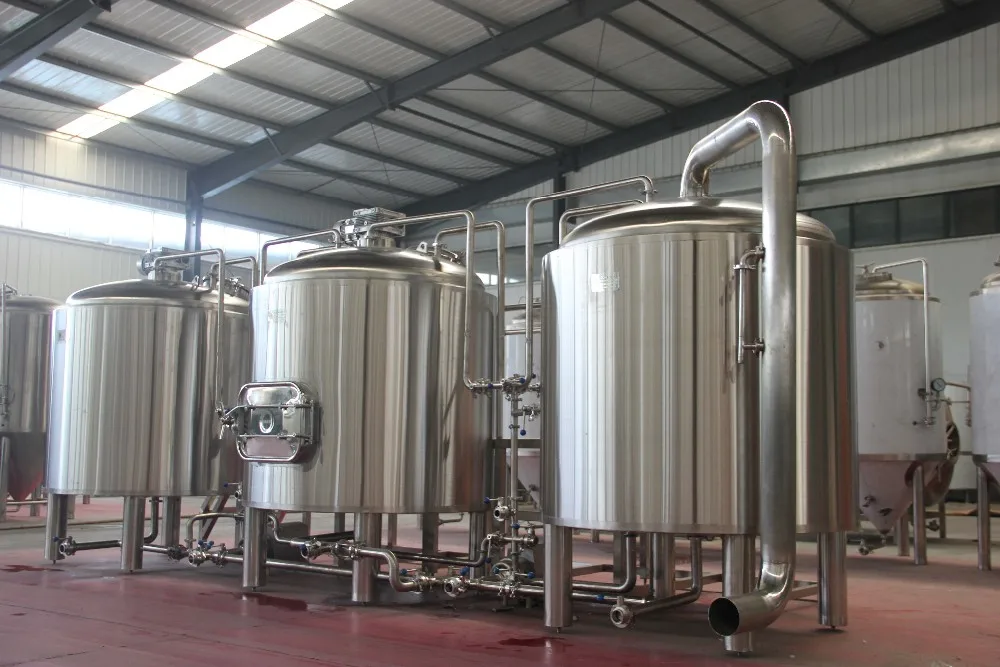

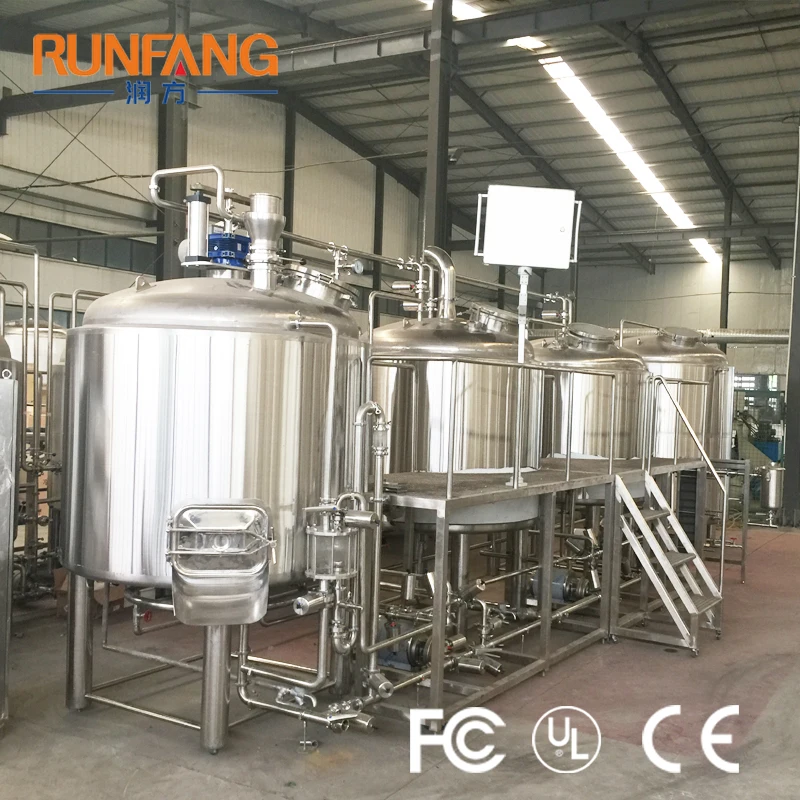

Brewhouse Details

Brewhouse System

Name: Mash System

Brand: RUNFANG

Original: China

Stainless steel material, all argon welding process, decorated red copper for customer to choose.

PLC controlling system, brand motor, liftable raker, milling sieve plate.

Customized, Logo service.

Main Features

Name: Quality parts
Brand: RUNFANG
Original: China
Every brewhouse is built with 304 Stainless Steel and uses Siemens motors, so they are as durable and hard-working as you are.

Machine Parts

Name: Import parts
Brand: Famous brand
Original: Germany, USA, South Korea, Japan

Customer can choose their trustworthy parts to improve the performance of brewing process.

All the motor adopt ABB or Siemens brand, which is durable and high quality.

Main Features

Name: First class welding technology
Brand: RUNFANG
Original: Chian
Our artisan are skillful craftsmen. All the welding are perfect to meet brewery requirement.

Other Beer Line

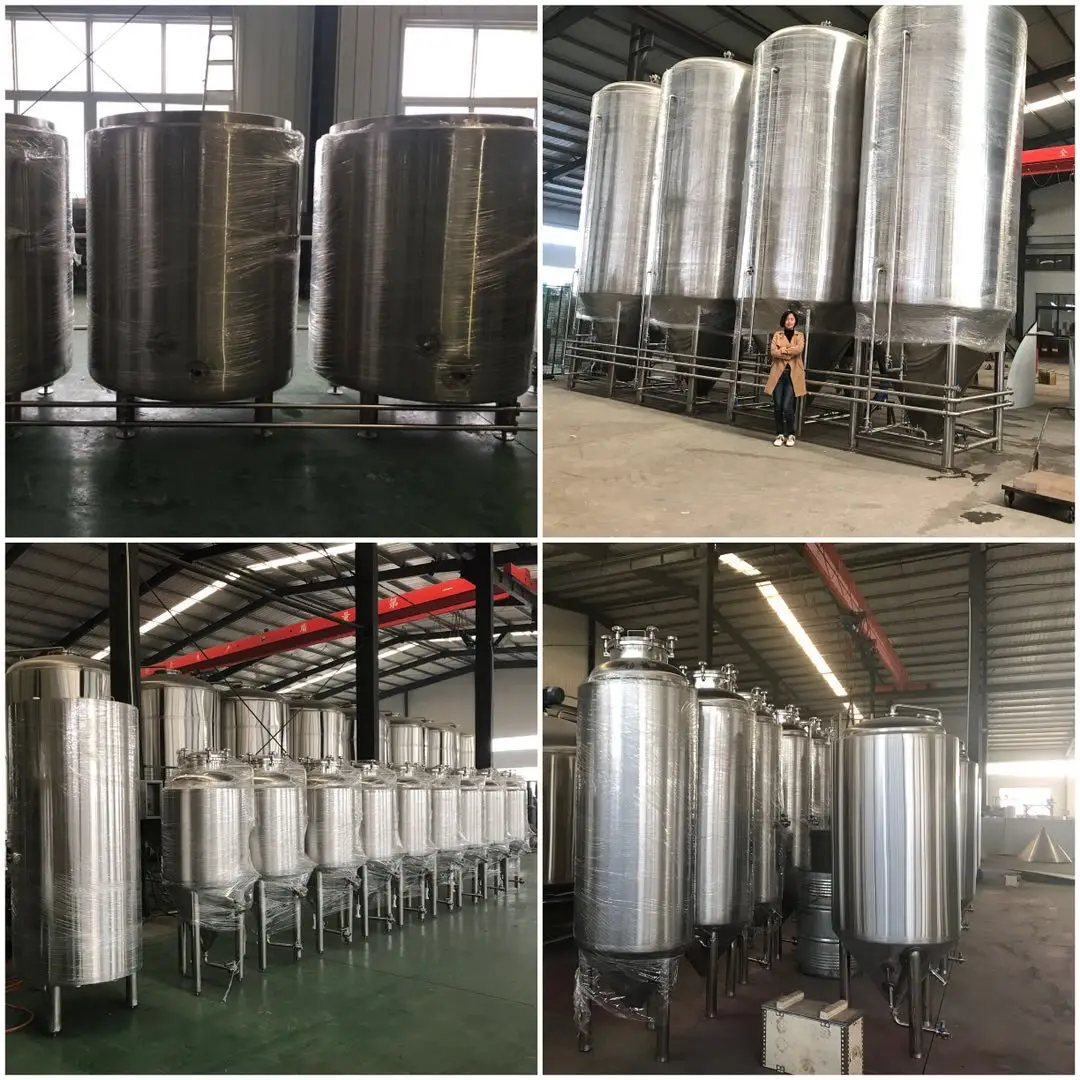

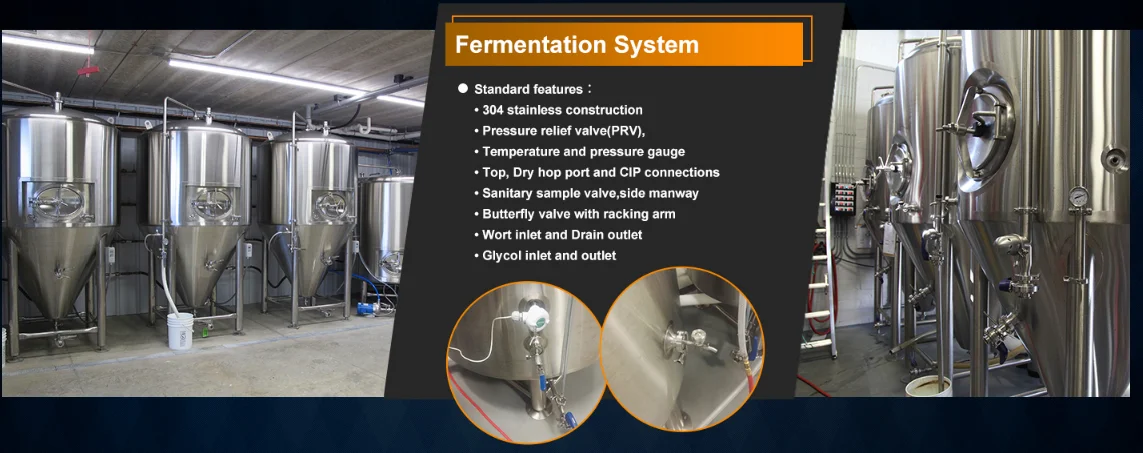

Fermentation tanks

2 vessels, 3 vessels, 4 vessels Brewhouse System

Micro Brewery Equipment

Stainless Steel Conical Fermenters/ Beer Aging Fermenters/ Brite Beer Tank/ Beer Unitank/ Beer Service Tank

CHARACTERISTICS
1-For all kinds of beer's fermentation(ale and lager)
2-Various capacities: 100L, 200L, 300L, 500L, 1000L, 2000L, 3000L, 5000L, 8000L, 10000L....
3-Thickness of stainless board and PU insulation material can be customized, our standard material is inner wall 3mm sus304, outer wall 1.5mm sus304, insulation 100mm PU
4-Technical support can be provided by our engineer, if you need, they can come to your country to help you install the equipment and brew beer.
5-Besides fermenting equipment, we can also provide mash system, cooling system, cip system, filter system, control system, bottling filling and capping machine, keg filling and washing machine, steam boiler

Packing & Delivery

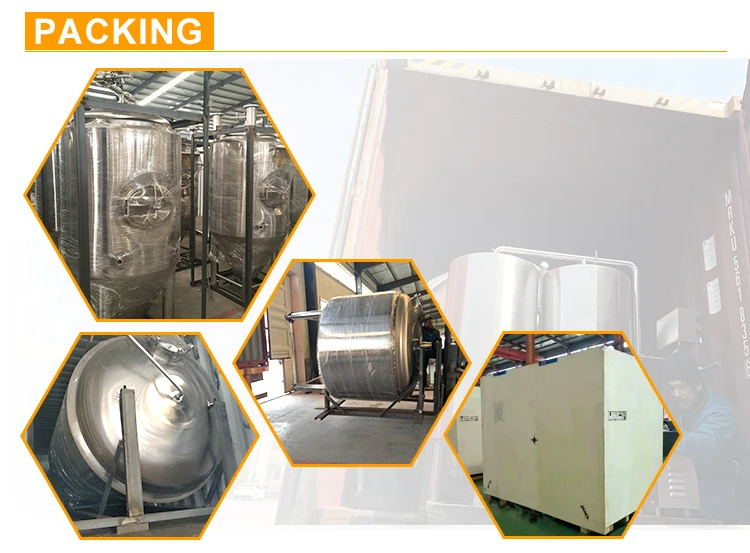

Packaging



Packaging Details
a. All the tanks will be covered with thin plastic film. Then Fix to iron frame for fixation.
b. All the parts will be protected with bubble bag or thin plastic film, the put in to wooden case.
c. Mash Pipes, fermentation cooling pipes, hose will be covered with thin plastic film.

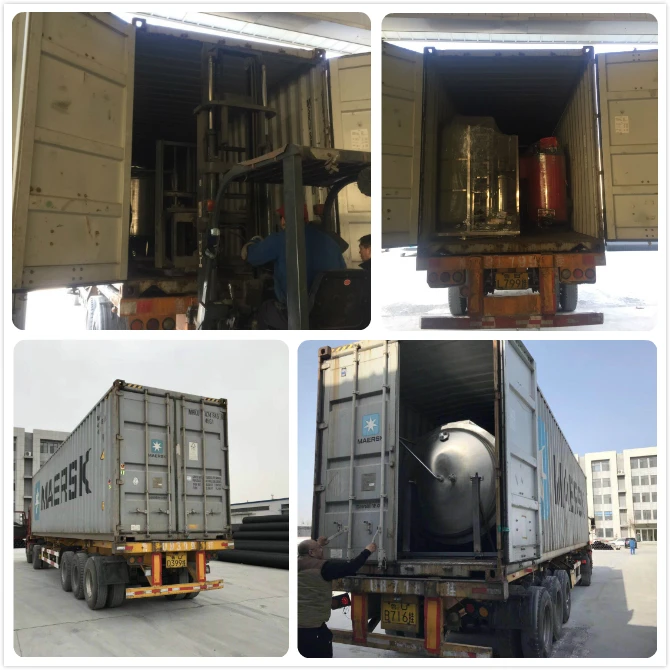

Delivery



Delivery Details
a. Delivery by sea shipping container.
b. Air transportation.
c. DHL, TNT etc.
Design&Installation

Pre-Sales Service

* Inquiry and consulting support.
* Cost analysis and brewery-house design support.
* CAD drawing support .
* View our Factory freely.
* OEM&ODM according your request.

After-Sales Service

* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Main equipment warrant 24 months, accessories warrant 12 months.
* All life service and technical support.

CE ISO UL
FAQ

If you don't know which brewery equipment is you need,please see belows questions,just tell me the answers according to the prompt:

1.The production capacity one day that you want to ?
2.The heating system:electric heating/steam heating/direct fire heating.which one heating is you prefer.
3.The material:stainless steel 304./red copper which material is you need ?
4.The brewery set up in hotel/pub or small brewery or for home brewery ?
5.The other request of the brewery:fermenters quantities,the capacity.
6.How many batches one day can be production ?
7.For the bottle filling machine,beer filter,keg washing and filling machine if you need we also can supply it.

Brewery Builter

Runfang Company Profile.

As the most senior manufacturer of brewery equipment in north China,Runfang Mechanical Equipment Co., Ltd is established in 2000,located in Jinan City --the capital of Shandong province.The area of factory is 12,000 square meters,and among which,the building area of production base is 6,000 square meters in where specially manufacture and develop the beer equipment and relevant products.Runfang Mechanical Equipment Co.,Ltd is a comprehensive company with many years’ successful experience and good performance; it takes the manufacture and sale of beer ,wine,beverage equipment as well as teaching experimental equipment .
Runfang has several professional designers and manufacturing workers ,who has more than 20 years experience in industry and they are the Chinese professional persons touching German technical at the earliest time,have cooperated with several colleges and universities for a long time .The self-brewing beer equipment of our company adopts the classical design concept and techniques of Germany .With great workmanship,excellent performance and easy operation,it is the best equipment to brew nice beer .We have various products in all sizes so as to meet the different requirements of customers greatly.Mainly include large-middle type brewhouse ,fermenting equipment ,yeast propagation equipment,filter system,CIP cleaning system,micro brewery equipment,scientific research & education equipment ,meanwhile we can supply the equipment of making wine,beverage and yogurt.
Runfang products have been exported to many countries and regions such as Russia,Australia,Taiwan,Peru,South Korea,etc.After the development of more than 17 years,Zhengmai has forged an excellent team with her wisdom and efforts.The great products and perfect services have won the trust of our customers.
